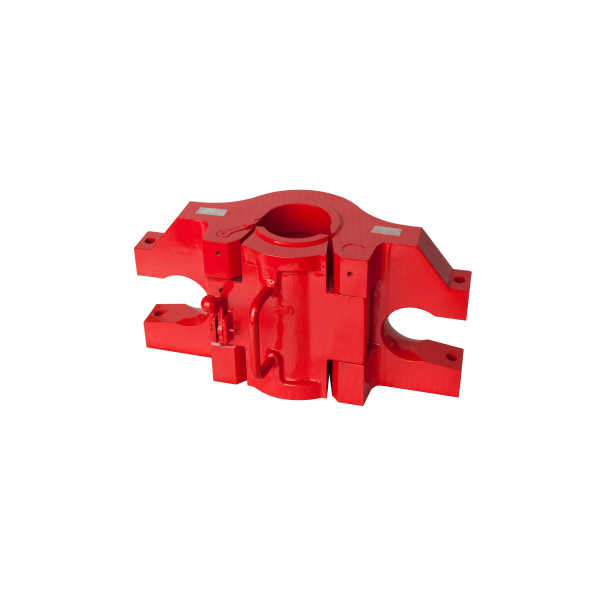

CD elevator are conventional side door drill pipe elevators for handling 90 degree shoulder drill pipe in oil and gas drilling operation, CD drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t to 750t, and cover pipe sizes from 2.3/8″ to 9.7/8″O.D .
| Model | Size(in) | Rate Cap.(Short Tons) |
| CD-100 | 2 3/8-5 1/2 | 100 |
| CD-150 | 2 3/8-14 | 150 |
| CD-200 | 2 3/8-14 | 200 |
| CD-250 | 2 3/8-20 | 250 |
| CD-350 | 4 1/2-20 | 350 |
| CD-500 | 4 1/2-14 | 500 |
| CD-750 | 4 1/2-9 7/8 | 750 |
